GZ-Link GPON Transceiver sticks are SFP transceivers with built-in GPON or EPON ONU functions. EPON sticks comply with IEEE802.3ah EPON standard and optionally, CTC OAM or DPoETM specifications. GPON sticks comply with ITU-T G.984 GPON standard. Digital diagnostics functions are available using the 2-wire serial bus specified in the SFP MSA.
Model | Package | Data Rate | Wavelength | Connector | Distance | Operating | DDMI | Type |
GEU-1143-20 | EPON ONU | 1.25G/1.25G | TX1310/RX1490 | Simplex LC | 20km | 0-70 | YES | SMF |

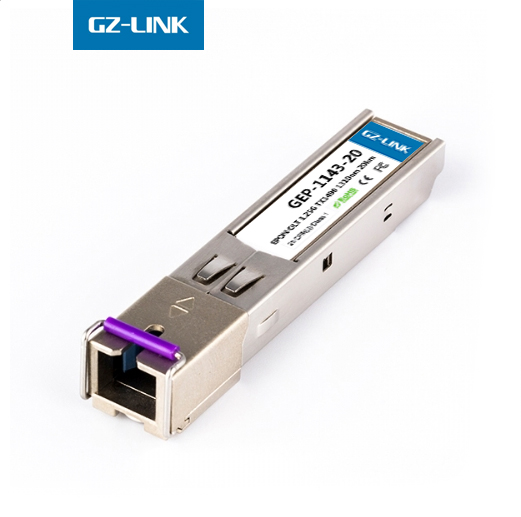

GEP-1143-20 | EPON OLT | 1.25G/1.25G | TX1490/RX1310 | Simplex LC | 20km | 0-70 | YES | SMF |
GGU-1234-20 | GPON ONU | 1.25G/2.5G | TX1310/RX1490 | Simplex LC | 20km | 0-70 | YES | SMF |
GGP-2134-20-B | GPON OLT B+ | 2.5G/1.25G | TX1490/RX1310 | Simplex LC | 20km | 0-70 | YES | SMF |
GGP-2143-20-C+ | GPON OLT C+ | 2.5G/1.25G | TX1490/RX1310 | Simplex LC | 20km | 0-70 | YES | SMF |
